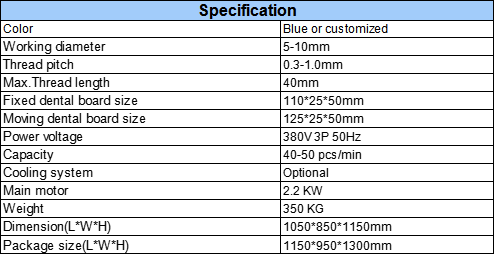

Specification:

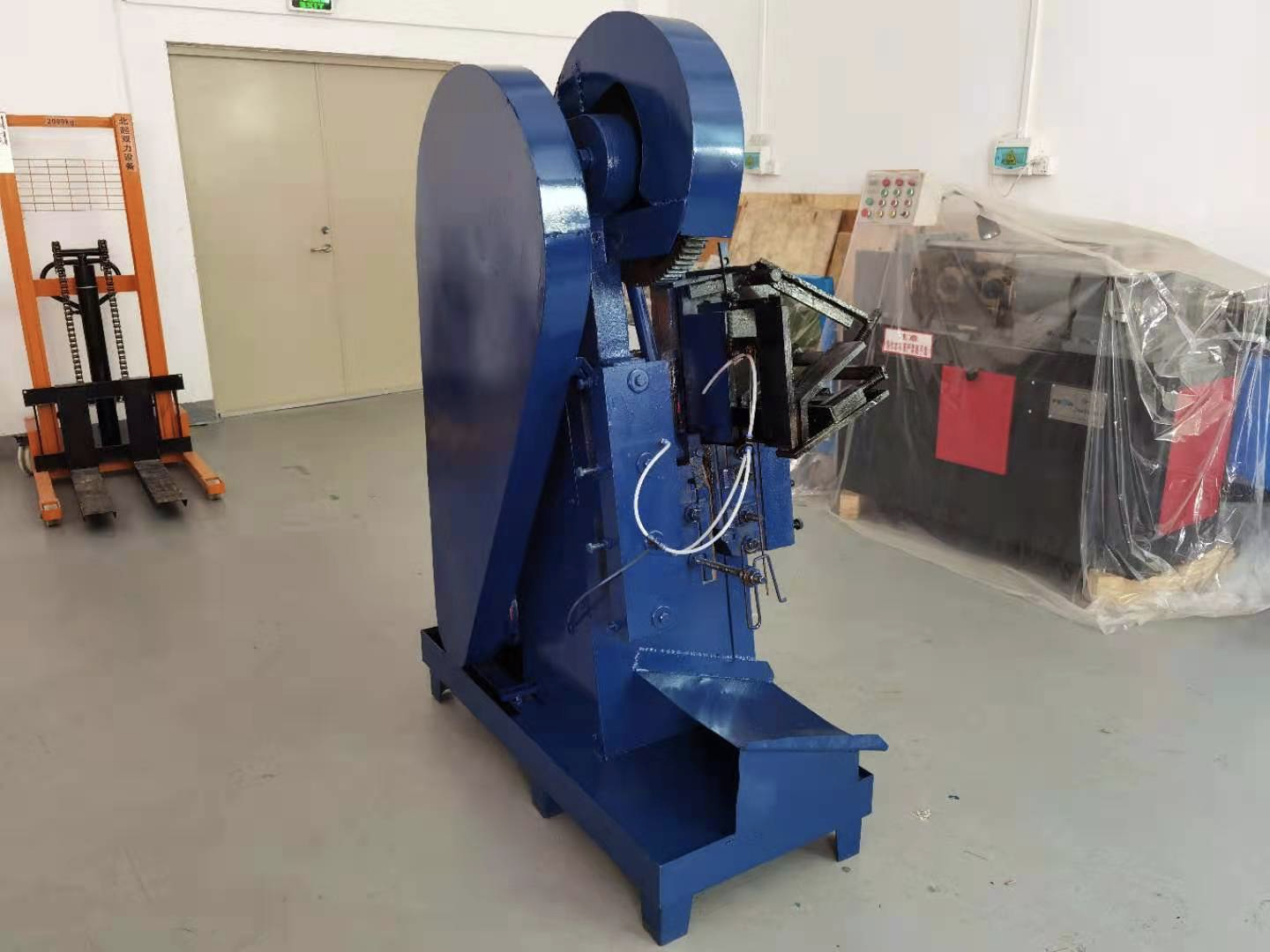

Machine ype: Vertical thread rolling with auto feeder and with cooling pump Machine

Thread rolling capacity from 2mm to 10mm dia
Thread Length from minimum 8mm to Max 40mm
Total length of the rod 300mm maximum

Thread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the thread rolling machine.

ADVANTAGES OF ROLLED THREADS

Rolled threads have improved physical characteristics, greater accuracy and a high degree of surface finish. They are uniformly produced at high rates of production with no wasting of material.
